OHLINS HD044 REMOTE RESERVOIR SHOCKS 12.7"-13.1" - TOURING '14+

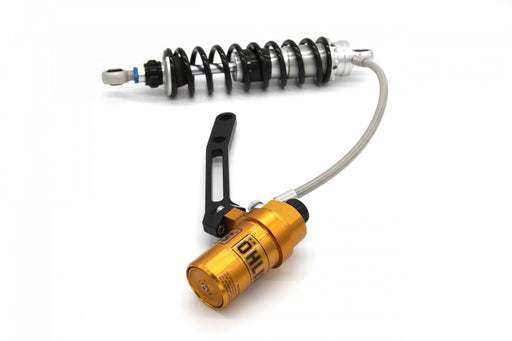

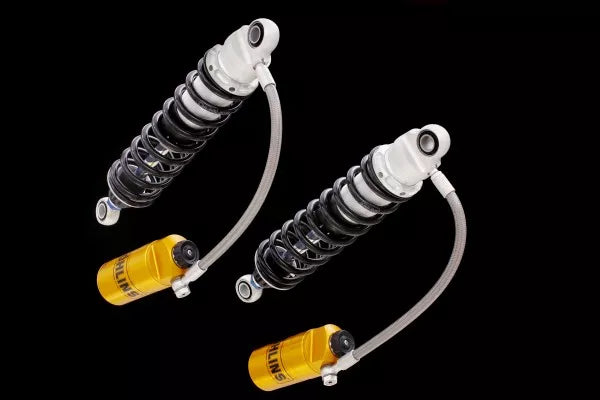

Öhlins HD044 remote reservoir shocks for 2014-Present day Touring.

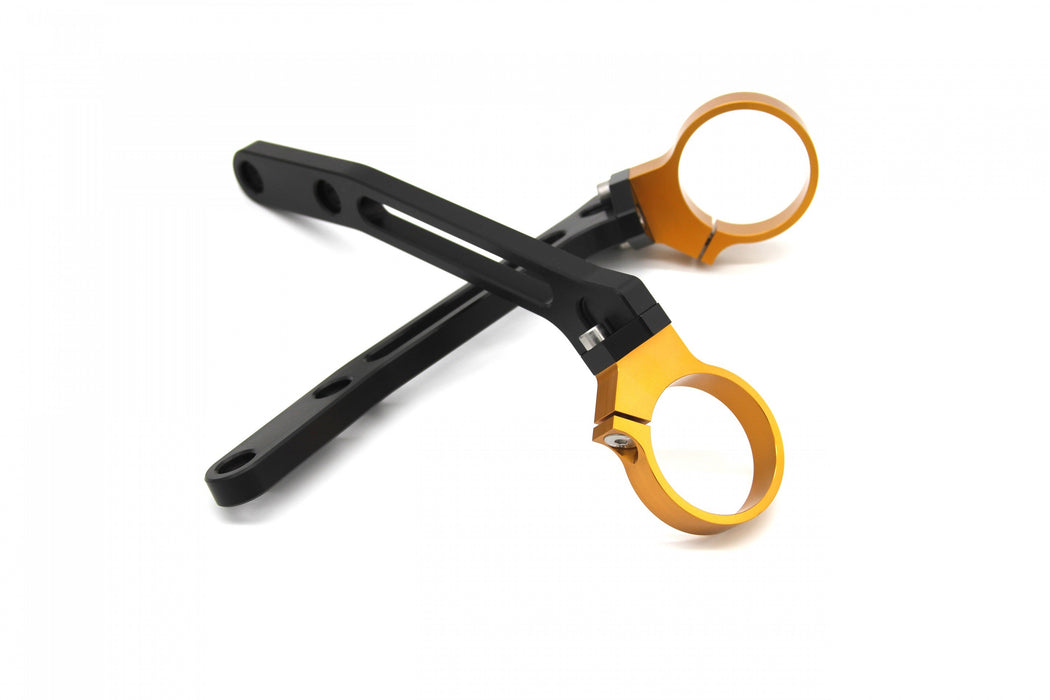

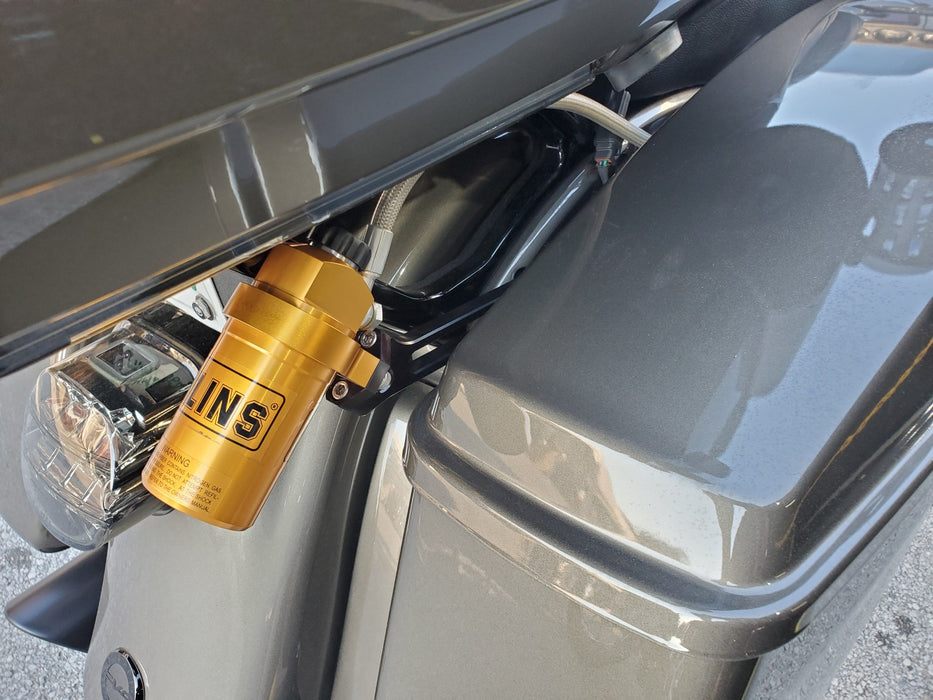

Now includes a strut mounting bracket that even clears HD tour packs and quick detach sissy bars!
Öhlins aftermarket suspension products designed for Harley-Davidson deliver dramatic handling improvement over the stock suspension. With a turn of a dial, you control whether you want a plush, compliant ride for long stretches of open road, or a firmer suspension for hugging mountain corners and curves.
Available with multiple spring rates available; each shock is specifically sprung for the weight your bike will carry and tailored to your riding style. With Öhlins suspension, the handling dynamics of your Harley-Davidson motorcycle will transform to a ride you didn’t think possible.
- Well-proven monotube design
- Designed for comfort, rideability, and maximum performance
- EACH pair is tested and tailor-made to suit the rider and application
- A wide range of spring rates are available not just standard & heavy duty like other brands
- Specifically designed and built for Bagger applications
- Dividing piston gas pressurized system (STX36D)
- Piggyback gas pressurized system (STX36P)
- 26 clicks of compression adjustment
- 26 clicks of rebound adjustment
- Threaded pre-load adjustment to properly set sag
- Adjustable ride height to achieve the proper ride height without sacrificing sag adjustment. (12.7" to 13.1") or (328 +5/-0 mm). For more height, shock extensions are available here!
- Remote reservoir with stainless steel braided hose
NOTE: OHLINS SHOCKS ARE BUILT TO ORDER! TYPICALLY SHIPS IN 1- 3 BUSINESS DAYS! PLEASE BE SURE TO PROVIDE THE SPECIFICS BELOW. WITHOUT THESE YOUR ITEMS WILL NOT BE BUILT AND/OR SHIPPED.
YOU WILL SEE THE NOTES SECTION OR, "SPECIAL INSTRUCTIONS" BOX IN YOUR CHECKOUT (MOBILE PHONE USERS MAY NOTE SEE THIS. WE WILL REACH OUT TO YOU IF THERE ARE NO NOTES!)
1. Bike
Answer (Model & Year) :
2. Rider weight?
Answer (in lbs) :
3. Passenger or heavy luggage/gear OVER 50% of the time?
Answer: YES or NO
4. IF YES to the question above please provide additional weight for passenger or gear.
Answer (in lbs) :
MOUNTING INSTRUCTIONS: MI_HD044.pdf (ohlinsusa.com)
OHLINS HD044 PART NUMBER BREAK DOWN
S36HR1C1L
S
Single Tube Design
36
36mm piston diameter
H
Monotube high pressure gas type of shock absorber with hose mounted reservoir
R1
Adjustable rebound damping Adjuster wheel or slot above the eye end or on the reservoir
C1
Adjustable compression dampening. Adjuster wheel or slot on the reservoir
L
Adjustable length
